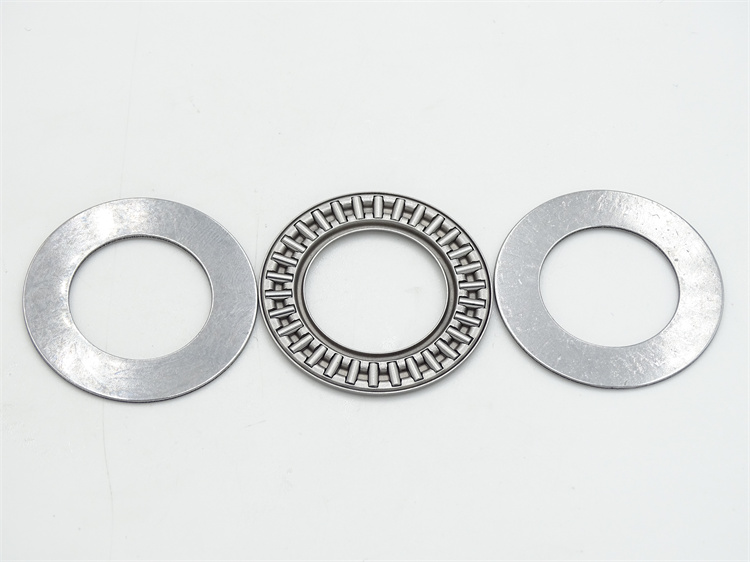

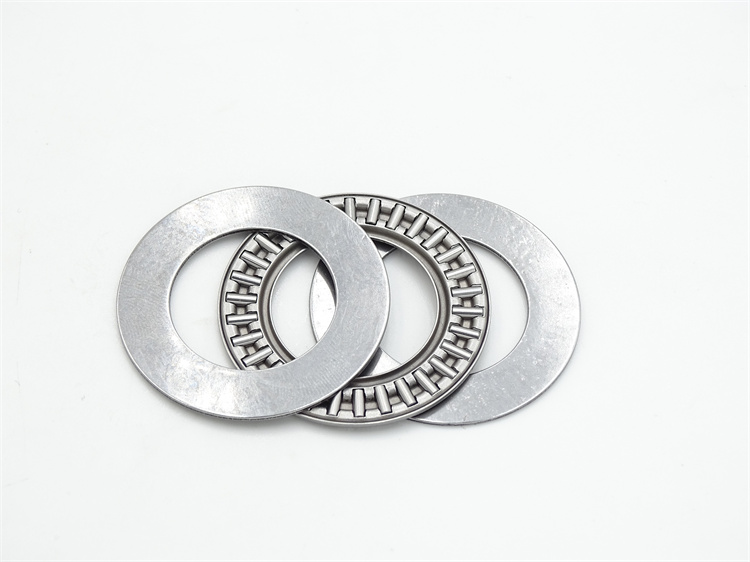

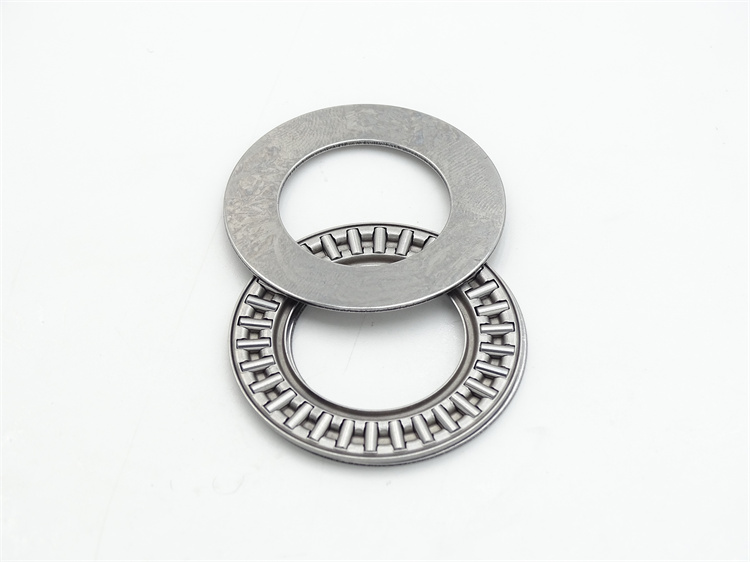

AXK15/28

Thrust Bearing with Flat Seat

Thrust Needle Roller Bearing,Series AXK,AWX,AX,TC,NTB

Thrust Parallel Roller Bearing,Series 811,812,893,874,894

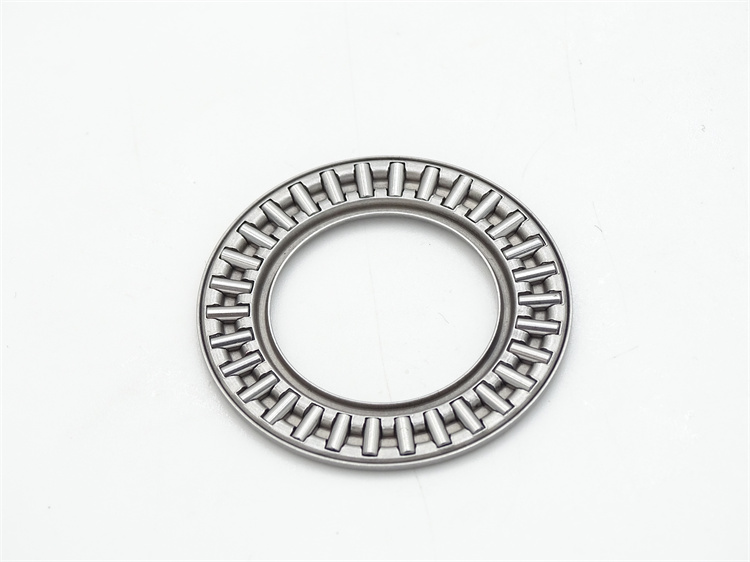

The thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles(rollers) with cage are set up in the space between rollway and collar and the cage reliably guides and clamps a lot of rollering bodies.There is a little differece among the rolling bodies in the same set.The thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial load in one direction.lt is used as the bearing allocation having the good rigidity and axial small space.

Thrust CoIler,Shaft Ring and Seat Ring

Thrust Coller,Series AS,LS,GS,WS,ZS,TRA,TRB,TRC,TRD.

Series AS thrust collar is punched with the high quality steel spring pfate in thickness of 1 mm and quenched and polished.When the surface of the adjacent parts can not be acted as rollway.aithough it has a good rigidity,Series AS collar shall play its full action.

Series GS, WS, LS thrust collars are made of bearing steel with the quenching process.The outer surface of GS seat ring and the inner surface of WS shaft ring are ground.Series LS thrust collar is an economic product with machining the outer and inter serf aces.

As for Series ZS thrust collar,when it is required for assembly to set up the bearing as bidirectional location,the series ZS collar can be used as axial location or seat hole location.
